etherCUT-R/24  -  L1 PHYSICAL LEVEL ETHERNET BREAKER / SWITCH

etherCUT-R/24  is a hardware-enforced L1 physical level Ethernet breaker / switch. It was designed for the physical isolation and switching of Ethernet networks. The device is available in a single version with a 24V power supply.

• Power Supply: 24V DC
• High electromagnetic compatibility
• Multiple Control Options:

1. Local control via a physical key
2. Integration with SCADA systems via a Remote Terminal Unit (RTU)
3. Remote management via GSM controller

• Extended Range: The control key can be installed at a significant distance from the module.
• Status Monitoring: Capability to set up external circuits for monitoring the module's status.
• How the module works
• An album of diagrams for designers

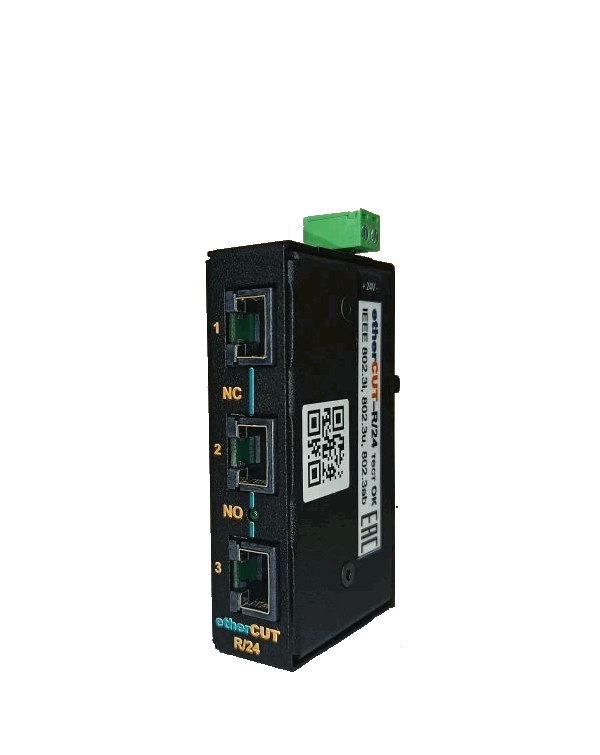

etherCUT-R/24 unit features three RJ-45 ports for connecting to an industrial Ethernet BASE-T backbone.

• Default State (Power Off): Ports 2 and 1 are connected.
• Active State (Power On): Ports 2 and 3 are connected. An LED indicator illuminates to confirm this link.

• Operating Temperature: -40 °C to +70 °C
• Ingress Protection (IP) Rating: IP30
• Dimensions (LWH): 60 x 20 x 105 mm
• Supported PoE Classes: 0, 1, 2, 3, 4
• Input Voltage Range: 19-29 VDC
• Power Consumption: 0.4 W
• Mounting: Standard DIN rail
